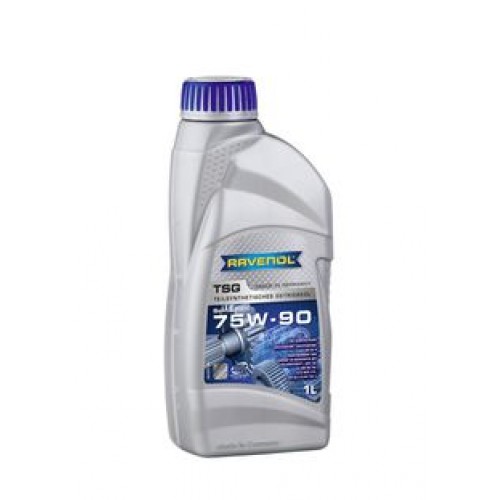

RAVENOL Getriebeoel TSG SAE 75W-90
- Article Number: 1222101
RAVENOL Getriebeoel TSG SAE 75W-90 is a semi-synthetic multi-purpose transmission oil for maximum duty manual transmissions.
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Application Notes
RAVENOL Getriebeoel TSG SAE 75W-90 is suitable for highly stressed manual transmissions (with and without synchronising), transfer cases and steering gearboxes in vehicles and work machines.
Quality Classifications
Specifications
API GL-4
Practice and tested in aggregates with filling
PSA Standard B 71 2315, VW 501 50, Ford M2C-175, GM Opel B 040 104 3
Characteristic
RAVENOL Getriebeoel TSG SAE 75W-90 offers:
• excellent ageing resistance
• extra high pressure absorption properties
• optimal viscosity-temperature properties
• excellent low temperature properties
• shearing stability
• stable lubricating film even under high stress
• extremely low pour point
• good elastomer compatibility to prevent leaks
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | gelbbraun | - | |
| Density at 20°C | kg/m³ | 876 | EN ISO 12185 |
| Viscosity at 40°C | mm²/s | 76,3 | DIN 51 562 |
| Viscosity at 100°C | mm²/s | 14,2 | DIN 51 562 |
| Viscosity index VI | 194 | DIN ISO 2909 | |
| Pourpoint | °C | -42 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
Download Product PDF
| Packages | |
| 1 L | 1222101-001-01-999 |
| 4 L | 1222101-004-01-999 |
| 10 L | 1222101-010-01-999 |
| 20 L | 1222101-020-01-999 |
| 60 L | 1222101-060-01-888 |
| 208 L | 1222101-208-01-888 |
| 1000 L | 1222101-011-06-999 |
