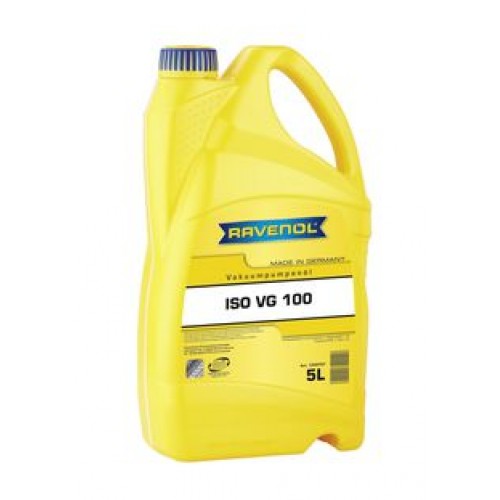

RAVENOL Vakuumpumpenöl ISO VG 100
- Article Number: 1330707
RAVENOL Vakuumpumpenoel ISO VG 100 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials is.
Application Notes
RAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 100 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Quality Classifications
Specifications
DIN 51524, 2 HLP, DIN 51506 VC, ISO 6743-3 DVA und DVC
Practice and tested in aggregates with filling
Vickers Vane Pump, AFNOR NF E 48-603 (HM, HV)
Characteristic
RAVENOL Vakuumpumpenoel ISO VG 100 offers:
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation.
- Neutral from over plastic seals
- Low pourpoint
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | yellow brown | visual | |
| Density at 20°C | kg/m³ | 886 | EN ISO 12185 |
| Viscosity at 40°C | mm²/s | 100,0 | DIN 51 562 |
| Viscosity at 100°C | mm²/s | 11,7 | DIN 51 562 |
| Viscosity index VI | 105 | DIN ISO 2909 | |
| Flash point (COC) | °C | 240 | DIN ISO 2592 |
| Pourpoint | °C | -24 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
| Packages | |
| 5 L | 1330707-005-01-999 |
| 20 L | 1330707-020-01-999 |
| 60 L | 1330707-060-01-999 |
| 208 L | 1330707-208-01-999 |
