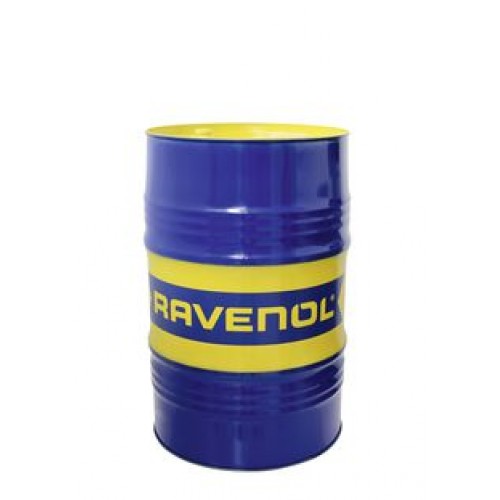

RAVENOL Kältemaschinenöl S 100
- Article Number: 1331157
RAVENOL Kaeltemaschinenoel S100 is premium quality synthetic refrigeration compressor lubricant. Based on alkyl benzenes, which due to their nature, have superior miscibility with hydrochlorofluorocarbon (R22), as well as chlorofluorocarbon refrigerants (R502 and R12: possibly used on some old refrigerating plants).
RAVENOL Kaeltemaschinenoel S100 is used in very low temperature applications, down to -60°C.
Relative to mineral and other synthetic lubricants, RAVENOL Kaeltemaschinenoel S100 has superior solubility with halocarbon refrigerants.
Application Notes
RAVENOL Kaeltemaschinenoel S100 is recommended for all refrigeration compressor types, reciprocating or rotary screw types. RAVENOL Kaeltemaschinenoel S100 is well suited for use with fluorocarbon regrigerants. It should not be used with sulphur dioxide or R134A refrigerants.
Quality Classifications
Specifications
Kältemittel auf Basis von Fluorkohlenwasserstoffen
Characteristic
RAVENOL Kältemaschinenöl S 100 offers:
- Miscibility with halocarbon refrigerants
- Low pour and floc point
- Chemical stability
- Increased system efficiency
- Avoids wax precipitation and increased system efficiency
- Long oil service life
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Density at 20°C | kg/m³ | 897 | EN ISO 12185 |
| Viscosity at 40°C | mm²/s | 100,0 | DIN 51 562 |
| Viscosity at 100°C | mm²/s | 8,0 | DIN 51 562 |
| Flash point (COC) | °C | 186 | DIN ISO 2592 |
| Pourpoint | °C | -27 | DIN ISO 3016 |
| flock point (R12) | °C | -60 | - |
| Neutralization number | mgKOH/g | 0,05 | ASTM D974 |
| copper corrosion 3h, bei 100°C | 1 | ASTM D130 | |
| Water content | Gew.-% | <30 | ASTM D1533 |
All indicated data are approximate values and are subject to the commercial fluctuations.
Download Product PDF
| Packages | |
| 208 L | 1331157-208-01-000 |
