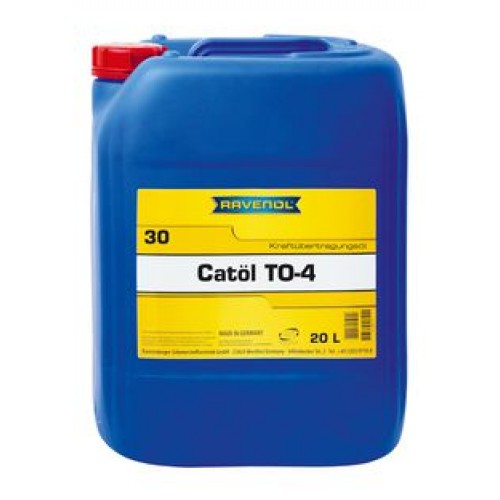

RAVENOL CATOEL TO-4 SAE 30

RAVENOL CATOEL TO-4 SAE 30 is a special transmission oil developed specifically to meet the stringent requirements of the Caterpillar TO-4 specification. It ensures maximum wear protection in different gears, like side drives and differentials optimized friction coefficient in the power-shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Application Notes

RAVENOL CATOEL TO-4 SAE 30 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Quality Classifications

RAVENOL CATOEL TO-4 SAE 30 is approved, tried and tested for aggregates specifying:

Specifications

API SF, API CE, API GL-4, API SF-4, CCMC G2, CCMC D4

Approvals

ZF TE-ML 03C, ZF TE-ML 07F

Practice and tested in aggregates with filling

Caterpillar TO-4, Allison C-4, Komatsu Micro Clutch, Eaton Fuller

Characteristic

RAVENOL CATOEL TO-4 SAE 30 offers:

• Exceptional wear protection
• High oxidation stability
• Excellent viscosity-temperature behaviour
• Optimizes maximum life span of components

All indicated data are approximate values and are subject to the commercial fluctuations.
